Audi Q5 AdBlue Repair
Mr F came to Cole & Miller Automotive with a frustrating question: “Why is the AdBlue countdown warning still on, even though I’ve refilled the tank?”

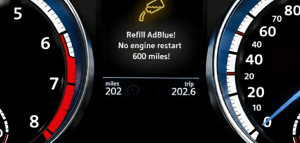

The warning light was still active on his Audi Q5, accompanied by a message that read: “No engine restart after 600 miles.” He’d already been to the main dealer, paid for a diagnostic check and a software update, but the fault hadn’t been resolved.
Frustrated and unsure what to try next, Mr F came to our team in Arlesey for a second opinion. What he needed wasn’t a software update. He needed the root cause of the issue identified and a reliable fix to be carried out.
This was a case that required structured testing, accurate data, and technician-led evaluation to reach the right result.
Here’s how we uncovered the fault the dealer hadn’t.
Early Investigation Into the Audi AdBlue Countdown Issue
Our first step at Cole & Miller Automotive is to talk with our client. He explained the back story to our technicians. His Audi Q5 had been displaying the AdBlue warning light and a countdown warning to ‘no engine restart’ for a while now. He’d filled the AdBlue tank with fluid, thinking this would remedy the situation, but it hadn’t. He’d taken his Q5 to the main dealer, where they had attempted to fix the issue with a software update.
The next step was to connect our dealer-level diagnostic software and carry out a full scan of the system. The ECU had stored one fault code:
- P20E8 – Reducing Agent Pressure Too Low
This told us the SCR system wasn’t building the pressure needed to inject AdBlue into the exhaust. Without that pressure, the emissions control system can’t do its job, and the car’s control unit will continue to flag an issue.
The SCR system relies on a pressurised supply of AdBlue — a urea-based fluid designed to cut down nitrogen oxide emissions. When working correctly, it injects this fluid into the exhaust, where it reacts to produce harmless nitrogen and water vapour. But for any of that to happen, the system has to build pressure first. Without it, the fluid can’t be injected into the exhaust, which means the NOx-reduction process cannot take place.
To check what happens when the vehicle is running, we drove the car while observing serial data from the SCR system. The readings showed that no pressure was building when the system was commanded to activate.
With that information in hand, our technician prepared a step-by-step test plan to identify whether the issue lay with the wiring, the control module, or the AdBlue pump itself.
Pinpointing the Cause of the Audi AdBlue Countdown Issue
Once we’d confirmed the fault code and verified that no pressure was building in the system, we moved on to a more detailed set of checks. Normally, when the SCR system is activated, the AdBlue pump pressurises the fluid lines so the system can begin injection. We needed to find out why that process wasn’t happening in this Audi Q5.
We started by inspecting the AdBlue level and checking for fluid contamination. Both were ruled out: the tank was full, and the fluid quality met the correct standard.
From there, we located the pump and its control module and used Audi’s wiring diagrams to guide our circuit tests. We checked voltage, earth, and continuity across the relevant components. All values were within range.
We then used our diagnostic software to trigger the pump manually. The system sent the command, but nothing happened. There was no pump noise, no pressure response, and no sign of fluid delivery.
With the wiring confirmed and the module responding correctly, we isolated the issue to the pump. It was receiving both power and signal, but not operating.
The root cause was clear: the AdBlue pump had failed and would need replacing to restore function.
Carrying Out the Audi Q5 AdBlue Repair: Pump Replacement
After confirming the fault and discussing the findings with Mr F, we received approval to go ahead with the pump replacement.
On this model, the AdBlue pump is part of the tank assembly located at the rear of the vehicle. Once access was gained, we disconnected the pump’s wiring and fluid lines, then removed the faulty unit. The tank seal was cleaned and prepared for installation.
A new OEM AdBlue pump was installed and aligned correctly within the system. The connector and lines were reattached, and the tank was filled with clean AdBlue to the correct level.
We then used our dealer-level diagnostic equipment to reactivate the system. The procedure included clearing the existing fault code, priming the delivery lines, and checking that pressure values were now within the correct range.
The system responded as expected, and no new warnings appeared during final checks.
Final Result: Fault Resolved and Audi Q5 Back to Normal
Once the new pump had been installed and the final checks completed, the system responded exactly as expected.
The AdBlue warning light cleared. The no-restart countdown disappeared. And the SCR system recorded stable pressure throughout its operating cycle.
We confirmed that the original fault code had been cleared and did not return. The ECU recognised the replacement pump, and all pressure and system values were within the correct range during the testing we carried out.
This wasn’t a quick reset or a temporary fix; it was a fully verified outcome based on accurate diagnosis and a properly executed repair.
For Mr F, the warning that had lingered for weeks was finally gone. And unlike his earlier visit to the dealer, the issue had now been resolved, without further delay or unnecessary cost.
Need Help With an AdBlue Countdown Fault? Speak to Our Team
When Mr F arrived at Cole & Miller Automotive, his Audi Q5 was still displaying the same warning he’d taken to the dealer weeks earlier. The tank had been topped up, a software update had been applied, and yet the countdown was still active.
What made the difference here was our thorough approach to a complex problem. It was a detailed diagnostic process, built on technical accuracy and carried out by a team that understands how these systems work.
We don’t apply fixes before understanding the cause. We test, we verify, and we repair only when the fault is confirmed — and the outcome reflects that approach.
